HiWay

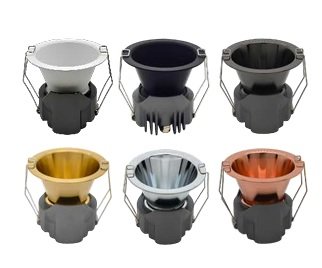

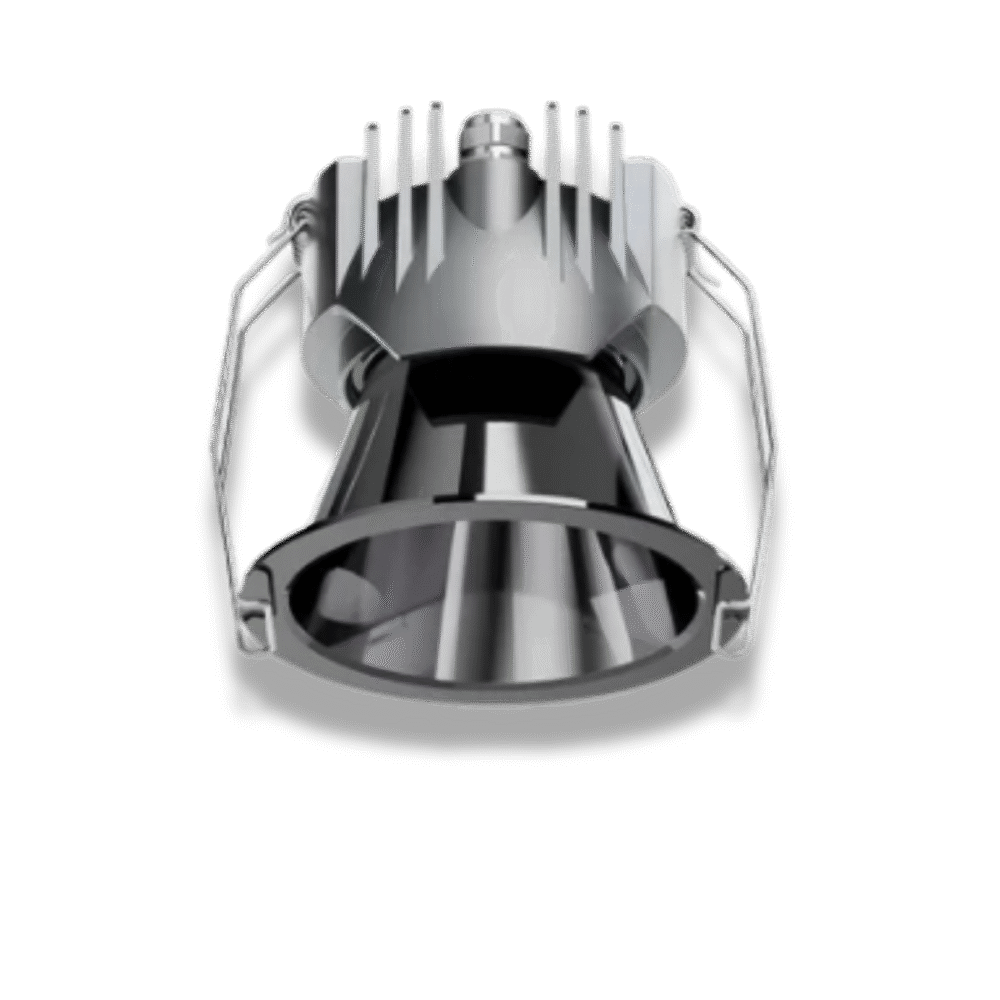

Phantom Ip65 Deep Cob Light

Availability: In Stock

Product Overview :

The Phantom IP65 Deep COB Light is a high-intensity, water- and dust-resistant recessed spotlight engineered for both indoor and semi-outdoor environments. With its deep housing design, it minimizes glare while ensuring concentrated, uniform light output. Built using premium-grade die-cast aluminum and an advanced optical lens, it combines efficiency, durability, and visual comfort — ideal for architectural, landscape, and high-humidity areas requiring precise illumination.

Technical Specifications:

Wattage Options: 7 W, 12 W, 18 W

Color Options: White (WH), Warm White (WW), Neutral White (NWH)

Input Voltage: AC 85–265 V, 50/60 Hz

CRI: ≥ 80 (Optional ≥ 90)

Beam Angle: 15°, 24°, 36° (model-dependent)

Material: Die-cast aluminum body with anti-glare deep reflector

CCT Range: 2700K – 6500K

Power Factor: ≥ 0.95

Luminous Efficacy: 100–115 lm/W (approx.)

IP Rating: IP65 (dust- and water-resistant)

Operating Temperature: -10°C to +50°C

Lifespan: ≥ 50,000 hours

Driver Type: Isolated constant current LED driver

Guarantee Safe & Secure Checkout

Description

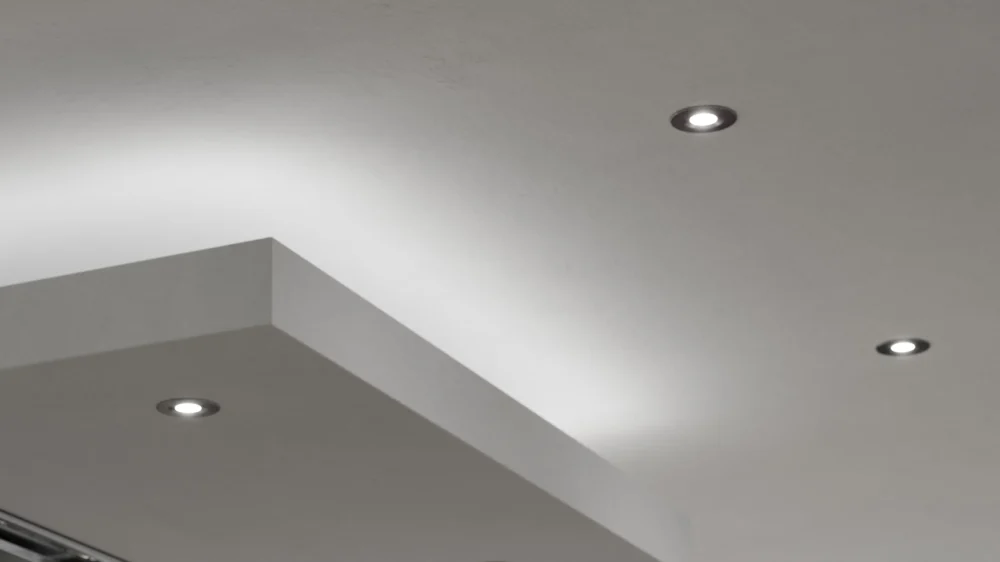

Applications:

Outdoor soffits and semi-covered areas

Bathrooms, balconies, and moisture-prone interiors

Retail facades and signage highlights

Hospitality and commercial entrances

Architectural and corridor lighting

Installation Process:

Turn off the main power supply before installation.

Prepare a ceiling cutout as per the specified dimensions.

Connect the driver output terminals to the light fitting securely.

Insert the fixture into the ceiling using spring clips.

Switch on power to ensure proper functioning and alignment.

Certificates and Reports:

BIS (Bureau of Indian Standards)

ISO 9001:2015

CE Certification

RoHS Compliance

IP65 Test Certification

LM-79 Photometric Test Report

LM-80 LED Life Test Report

High Voltage Test Report

Surge and Thermal Test Report

IP65 Waterproofing Compliance Report
