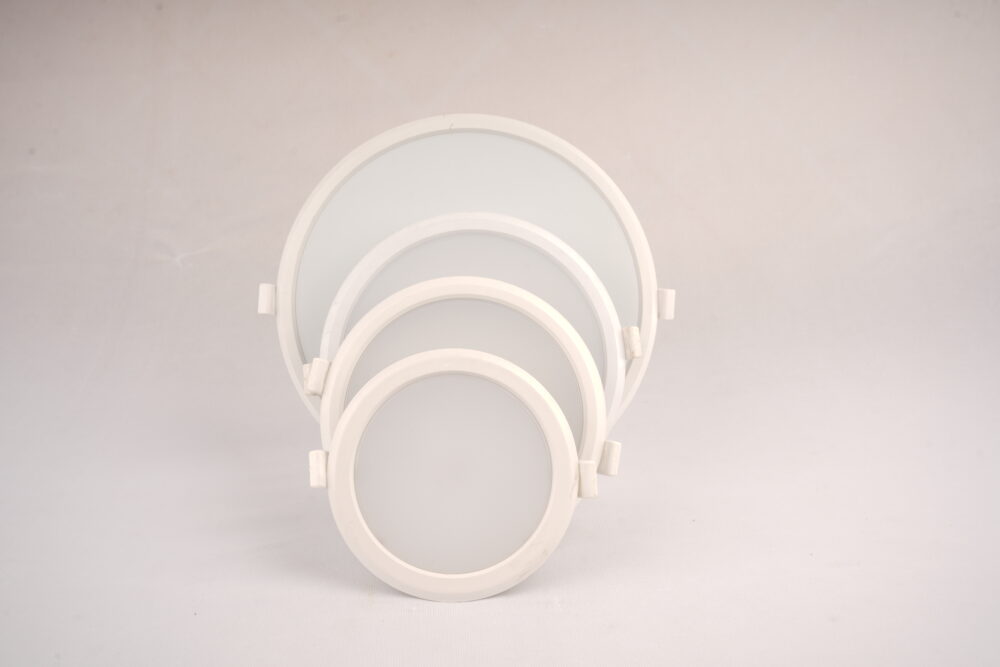

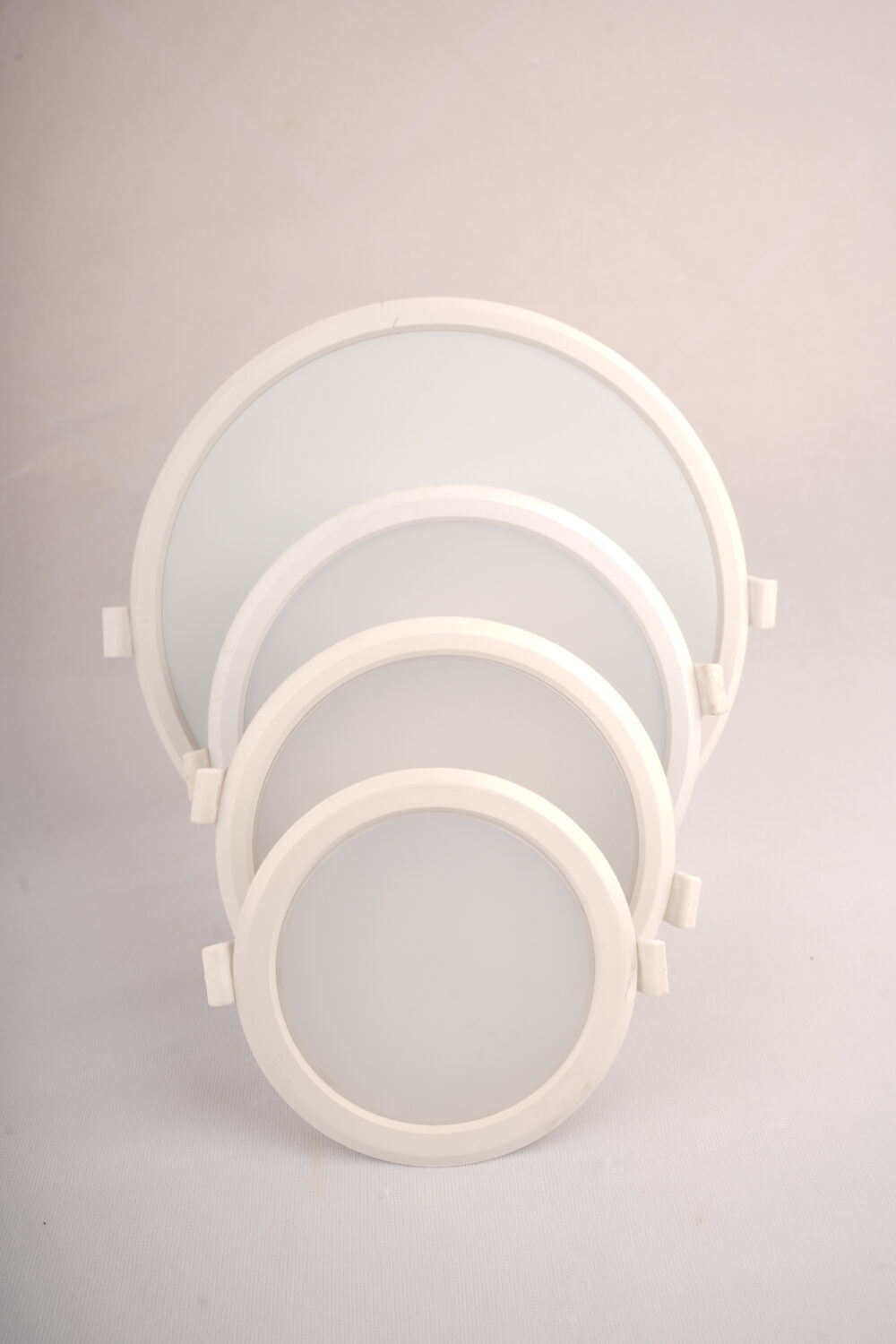

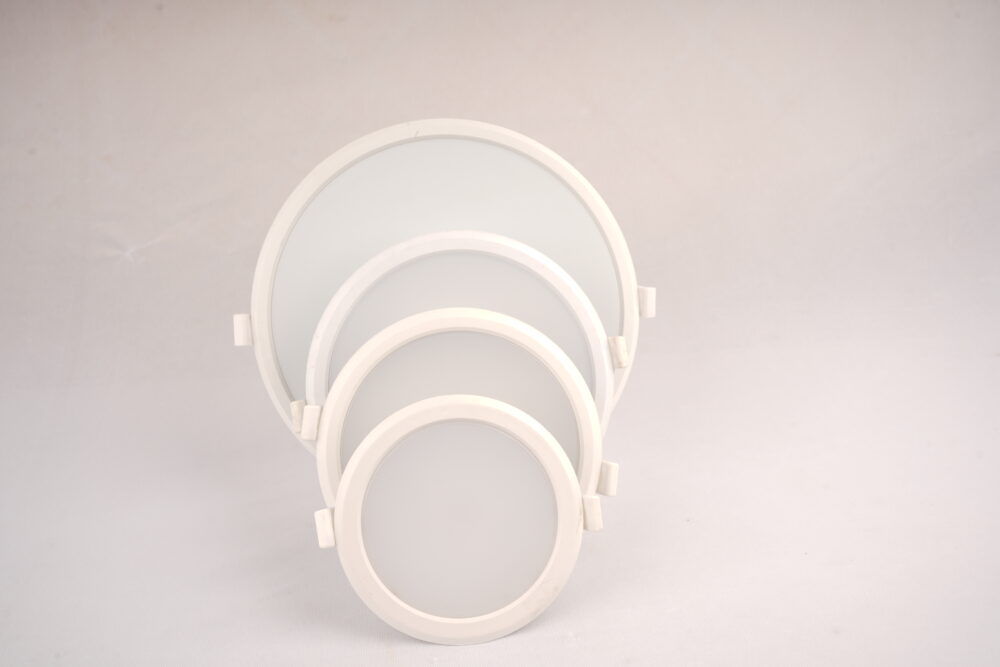

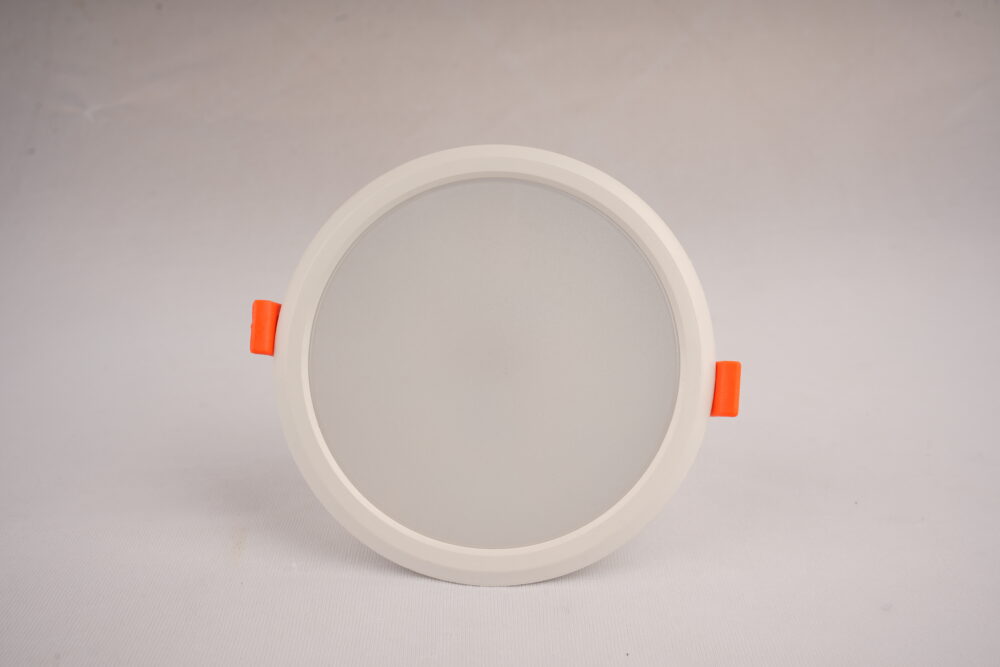

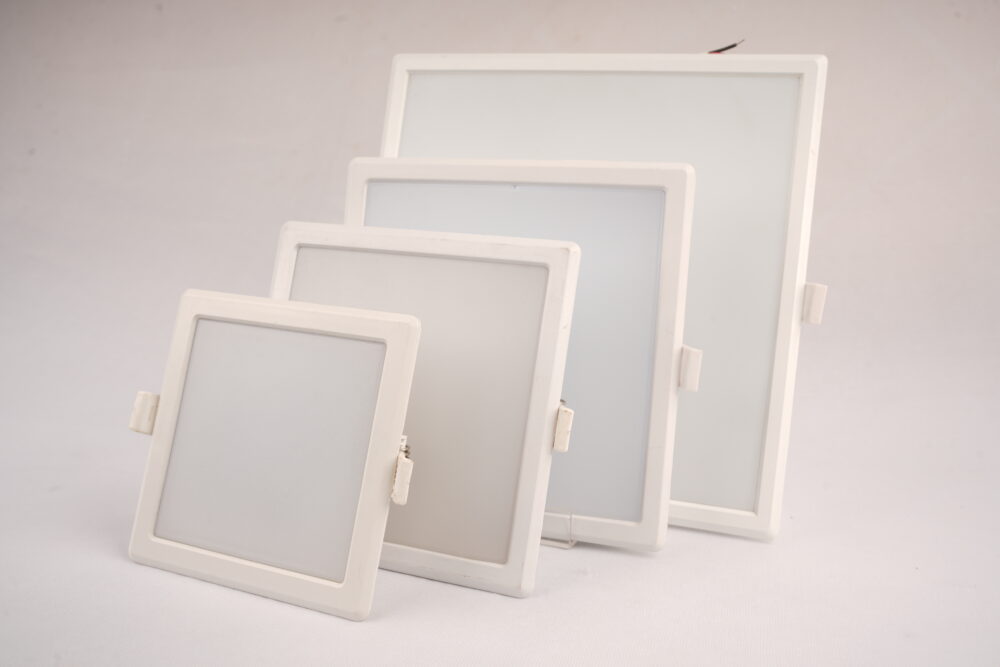

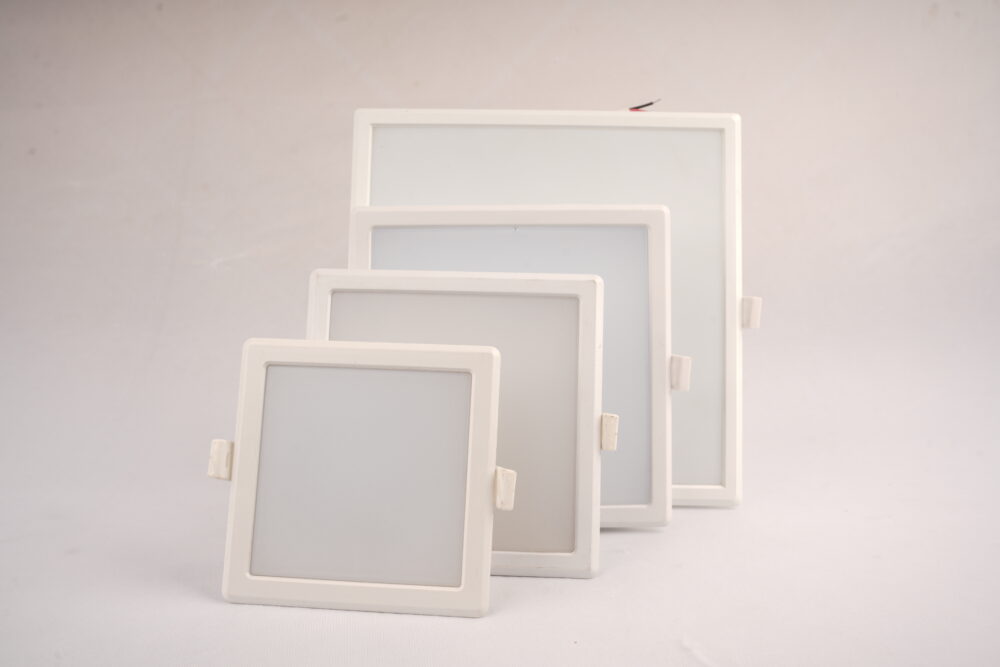

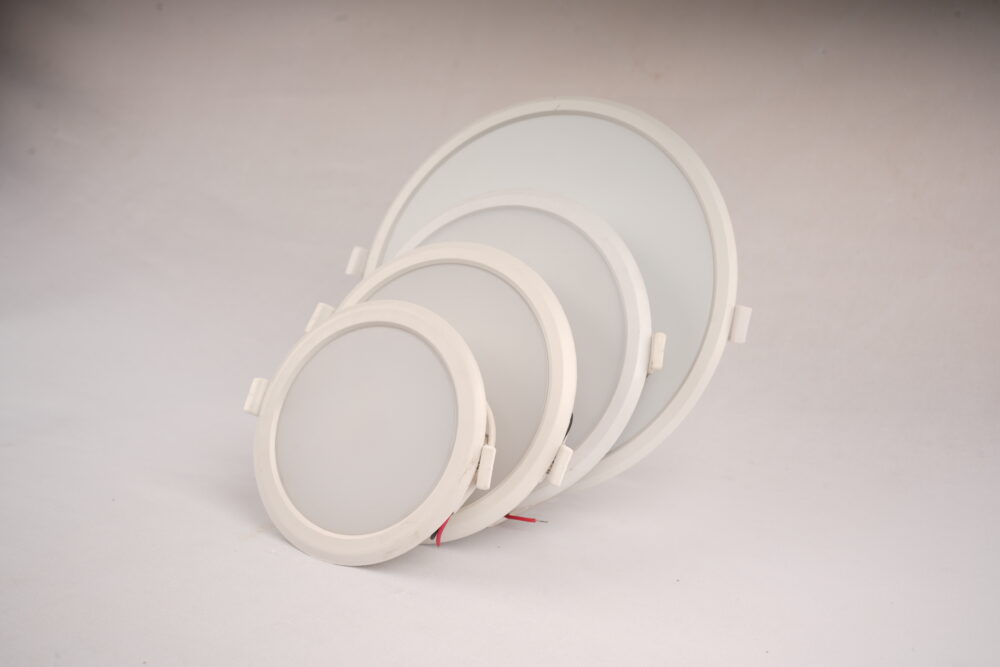

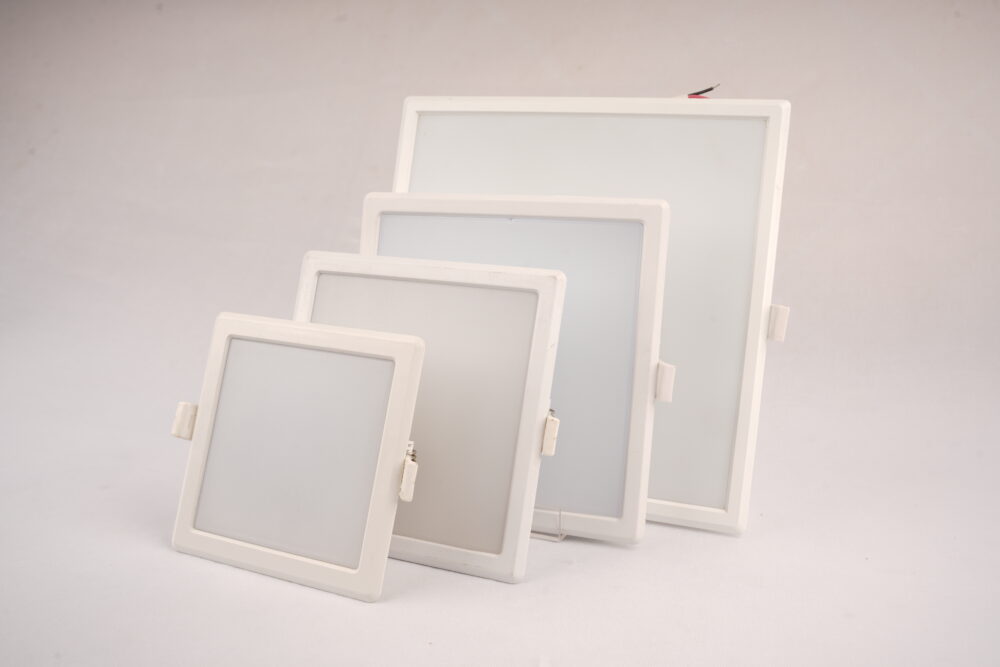

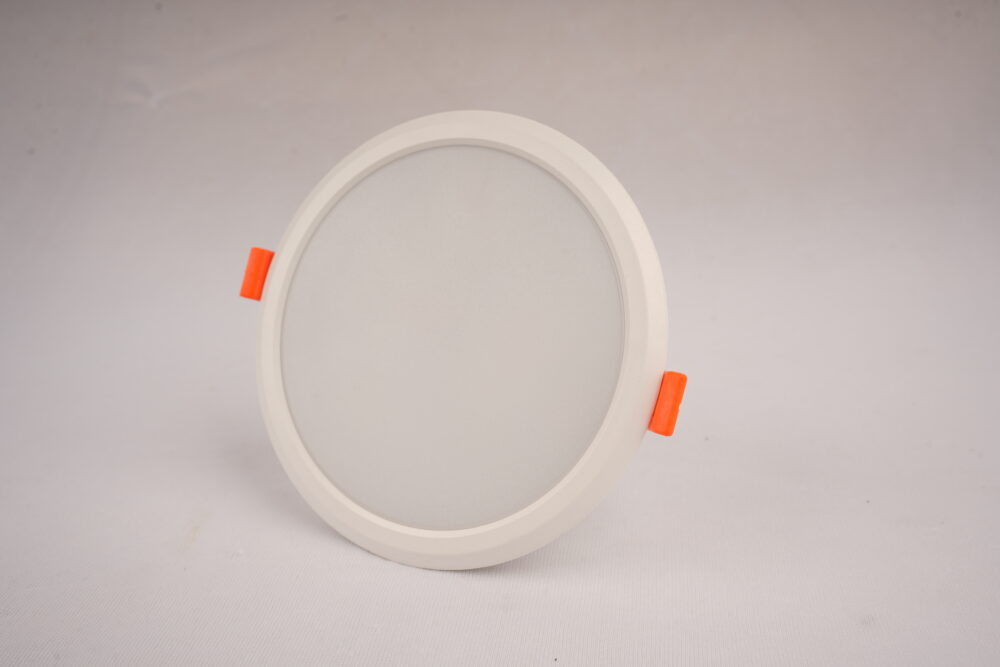

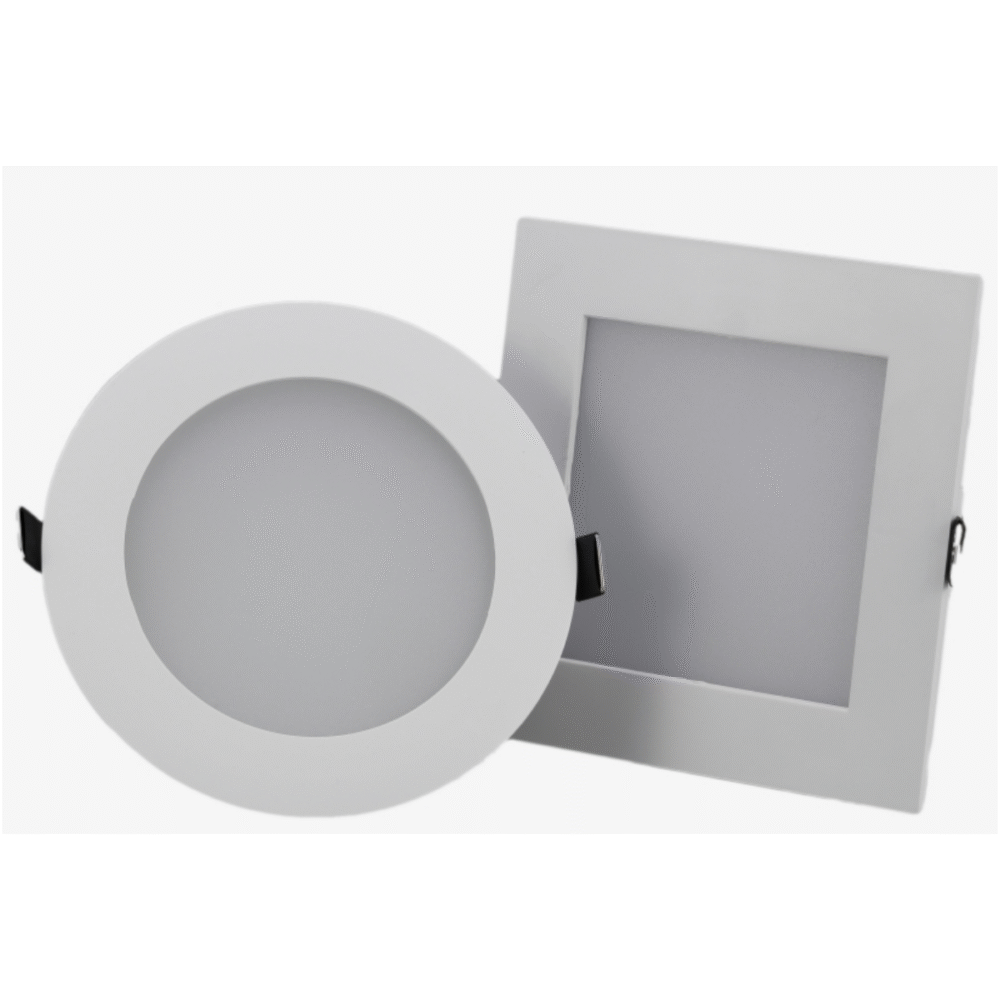

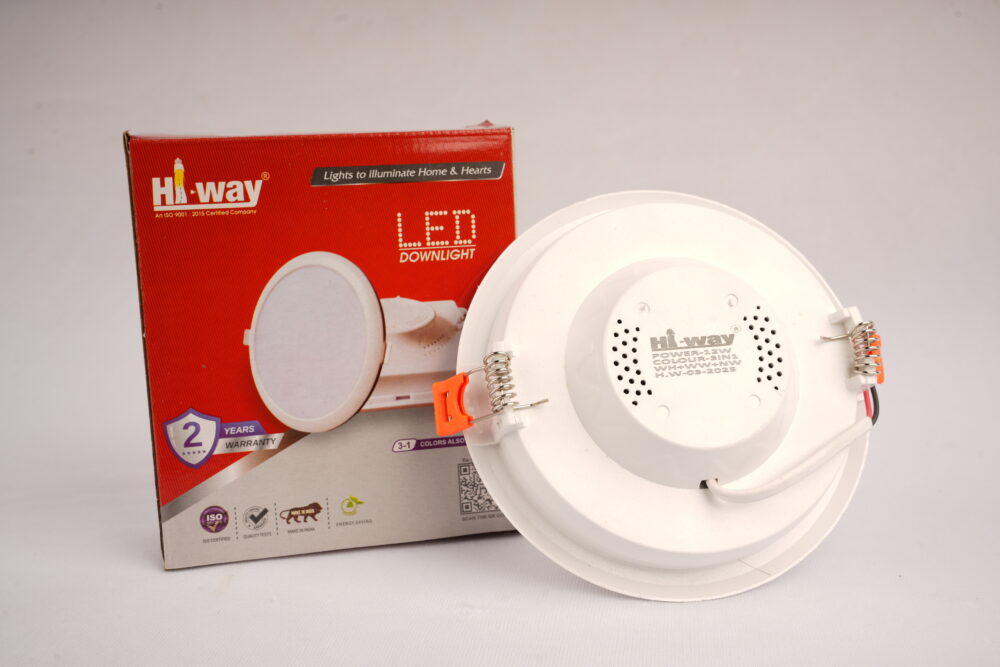

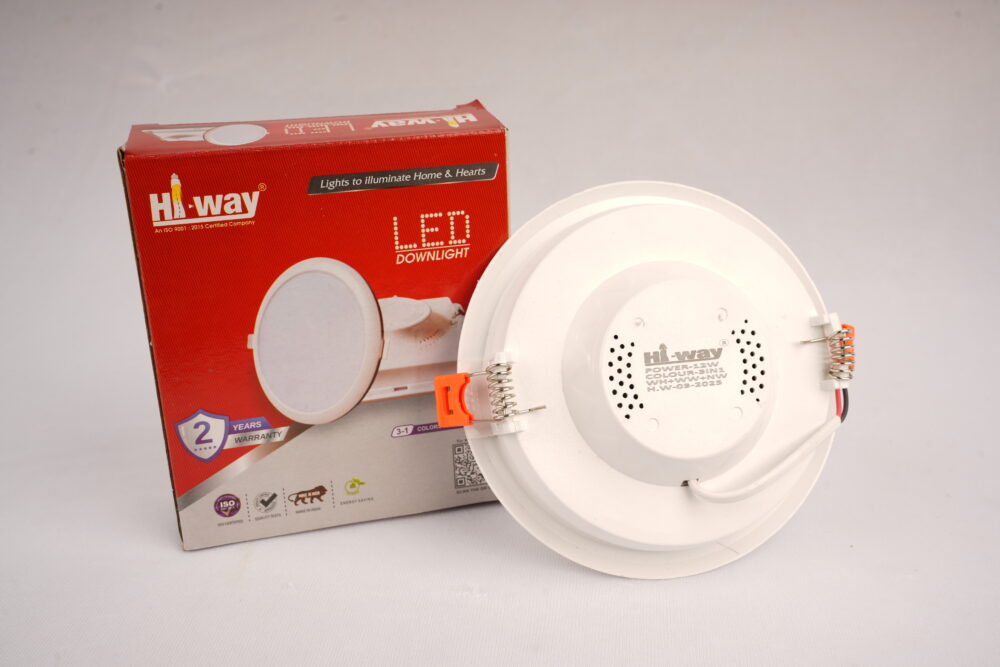

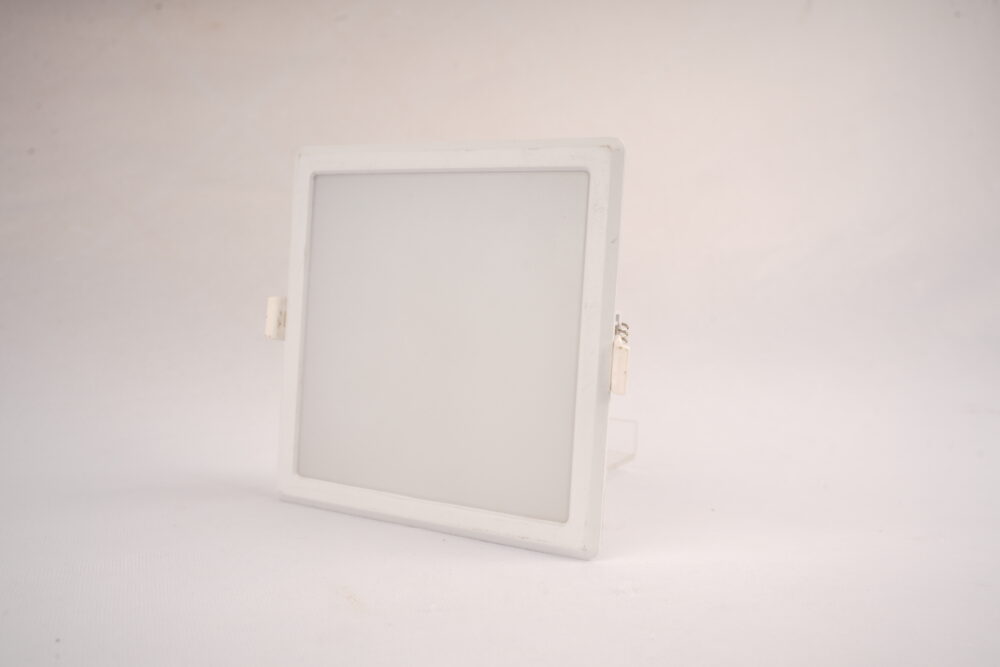

The PC Slim Panel Light offers sleek, modern lighting with a low-profile design perfect for contemporary interiors. Constructed from high-grade polycarbonate, it provides even light diffusion, vibrant colors, and energy-efficient performance. Ideal for both general and decorative lighting.

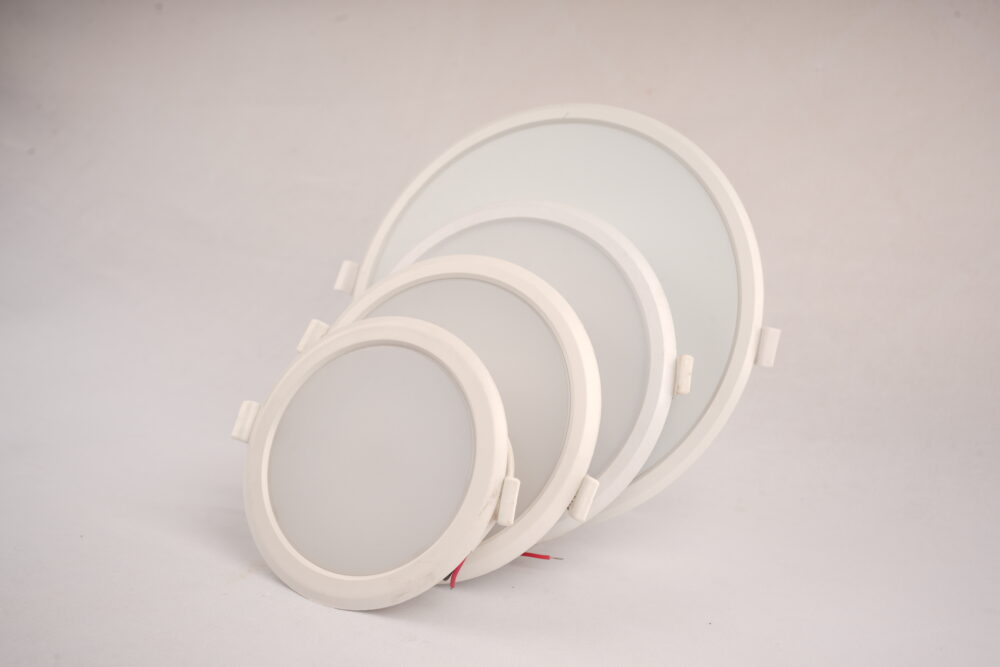

Wattage: 8W / 12W / 15W / 18W
Color Options: WH (Cool White) / WW (Warm White) / R / G / B / P / O / 3-in-1 Colours
Material: Polycarbonate housing & diffuser
LED Type: SMD LED
Input Voltage: AC 90–265V, 50/60Hz
Luminous Efficacy: 90–100 lm/W
Power Factor: ≥0.90
Beam Angle: 120° wide beam
CRI: ≥80
IP Rating: IP20 (indoor use)
Lifespan: 25,000–30,000 hours
CCT Range: WH (5700–6500K), WW (2700–3000K), RGB & multicolor
Residential lighting (living rooms, bedrooms, kitchens)
Commercial spaces (offices, showrooms)
Decorative mood lighting
Hotels and restaurants
Switch off power supply.
Cut ceiling hole to specified size.
Connect driver wires to mains.
Insert panel into cutout and secure with spring clips.
Restore power and test illumination
Wattage: 8W / 12W / 15W / 18W
Color: Single-color & 3-in-1 adjustable
CE, RoHS, ISO 9001
Required Test Reports :
LM-79 photometric
Electrical safety
Color consistency test
