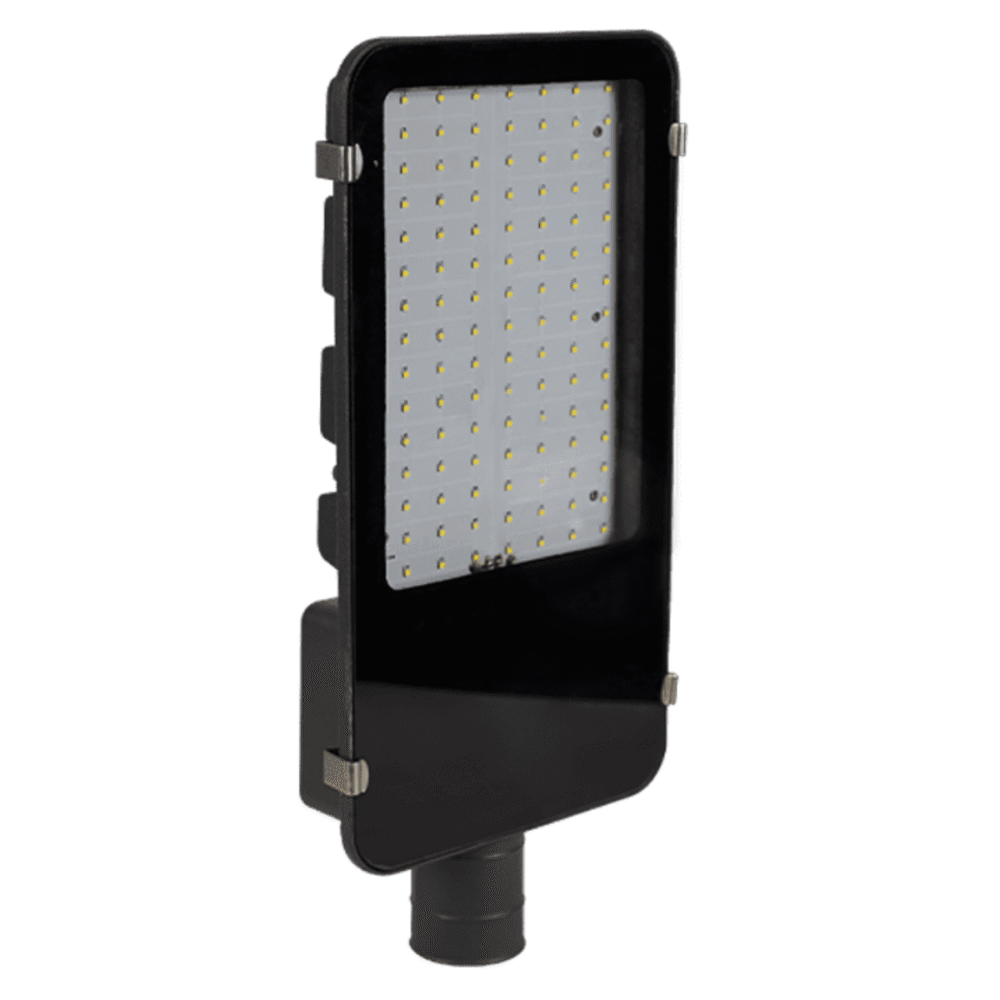

Frame Street Lights are heavy-duty LED fixtures with a robust frame design, built to withstand extreme outdoor conditions while providing maximum brightness for large-scale areas. Their modular structure allows higher wattages for wide-area coverage with consistent illumination.
Wattage Options: 50W, 100W, 150W, 180W, 200W, 250W, 300W
Available Colors: White (WH), Warm White (WW), Natural White (NWH)
Input Voltage: AC 90–300V, 50Hz
Power Factor: ≥0.95
Luminous Efficacy: 120–140 lm/W
CRI: ≥80
Housing Material: Die-cast aluminum frame, powder-coated for corrosion resistance
Optics: Glass or lens-based modules
IP Rating: IP66
Surge Protection: 10 kV
Operating Temperature: –25°C to +50°C
LED Lifespan: >50,000 hours
Highways and national roads
Ports and shipyards
Industrial complexes
Large outdoor sports arenas
Airport surroundings
Use heavy-duty brackets for pole or wall mounting.
Follow wiring and grounding guidelines for high-wattage fixtures.
Different Variants
Modular designs with interchangeable panels.
Smart control (timer, motion sensor, remote operation).
Solar-compatible high-watt versions
BIS
CE
RoHS
ISO 9001:2015
Required Test Reports :
LM-79
LM-80
IP66
Surge Test
