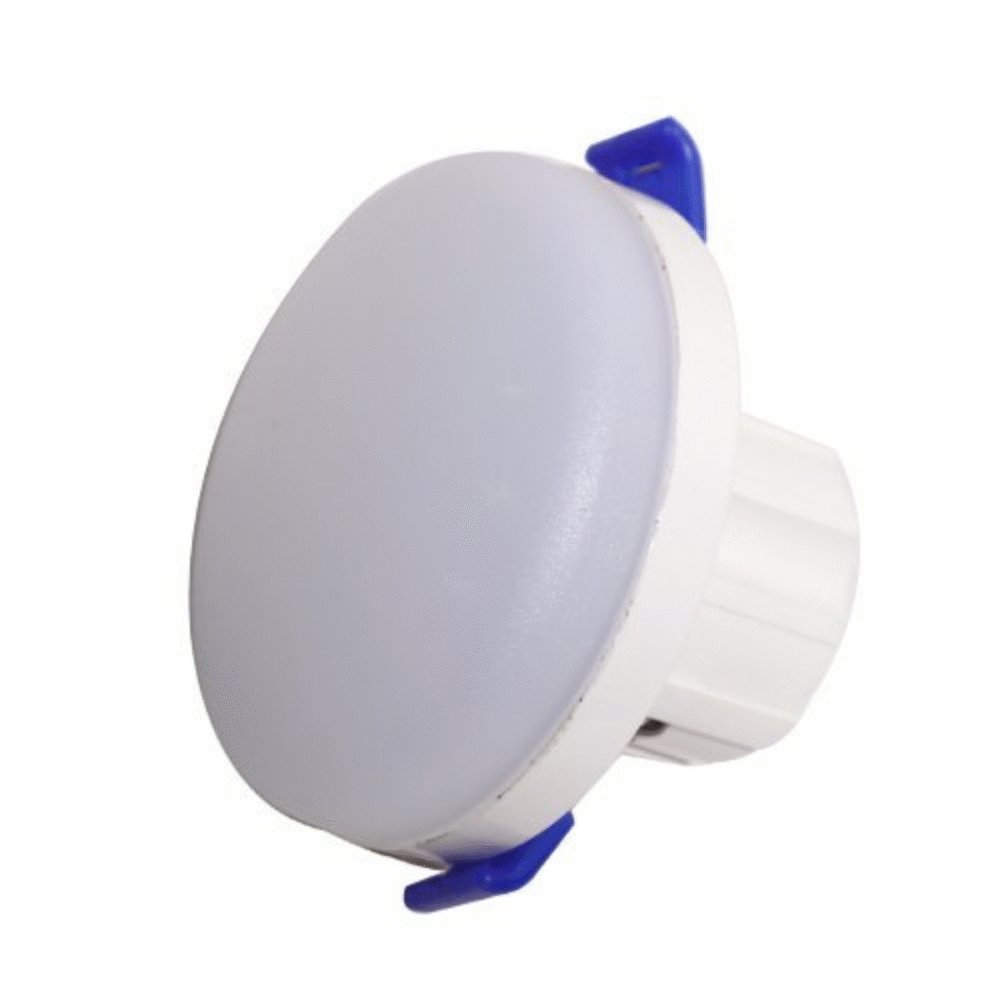

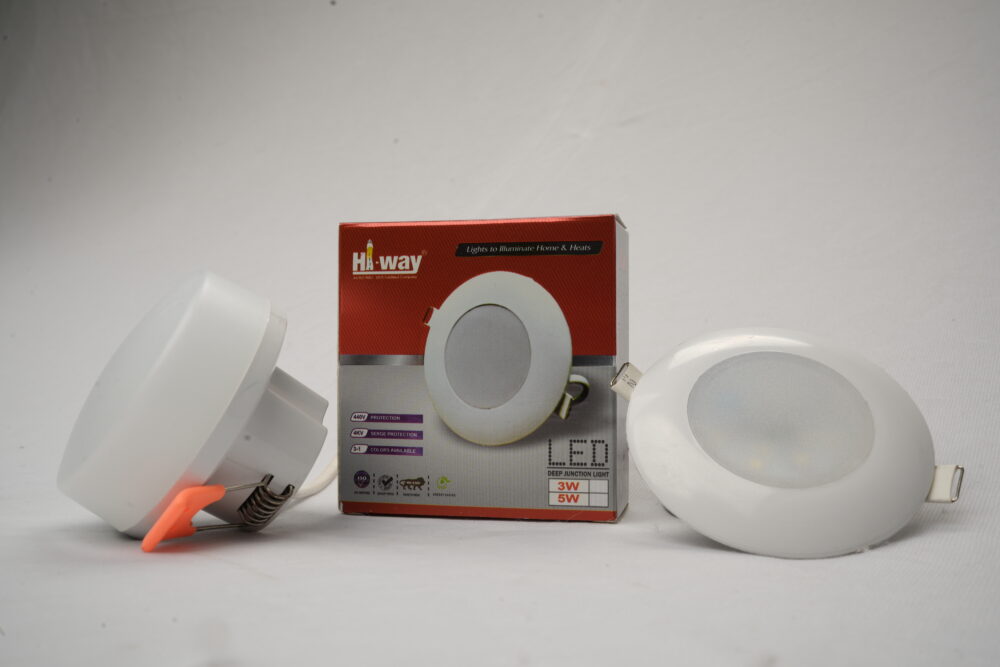

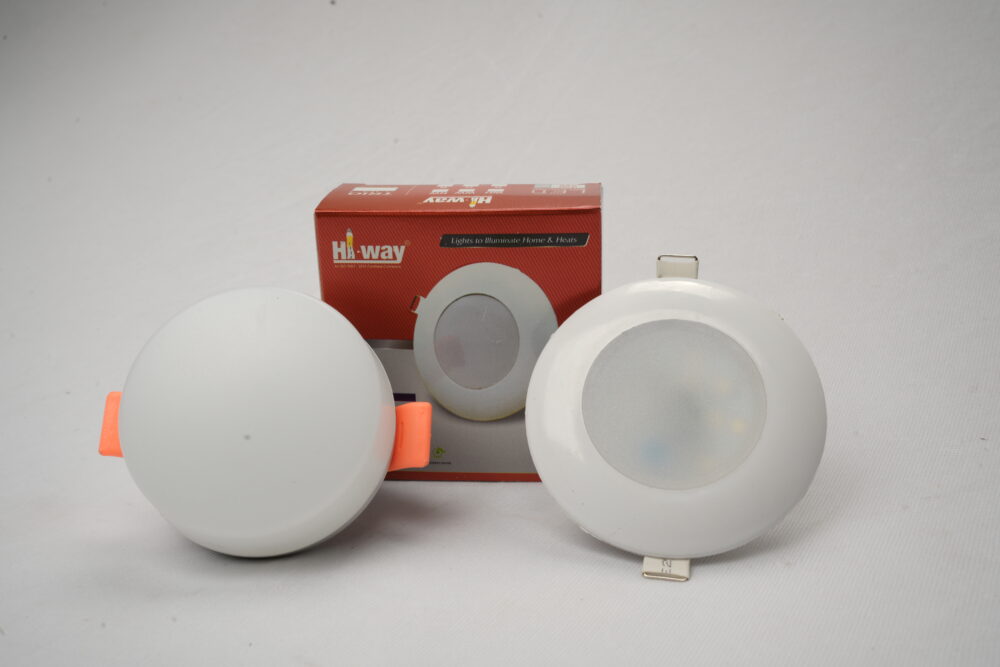

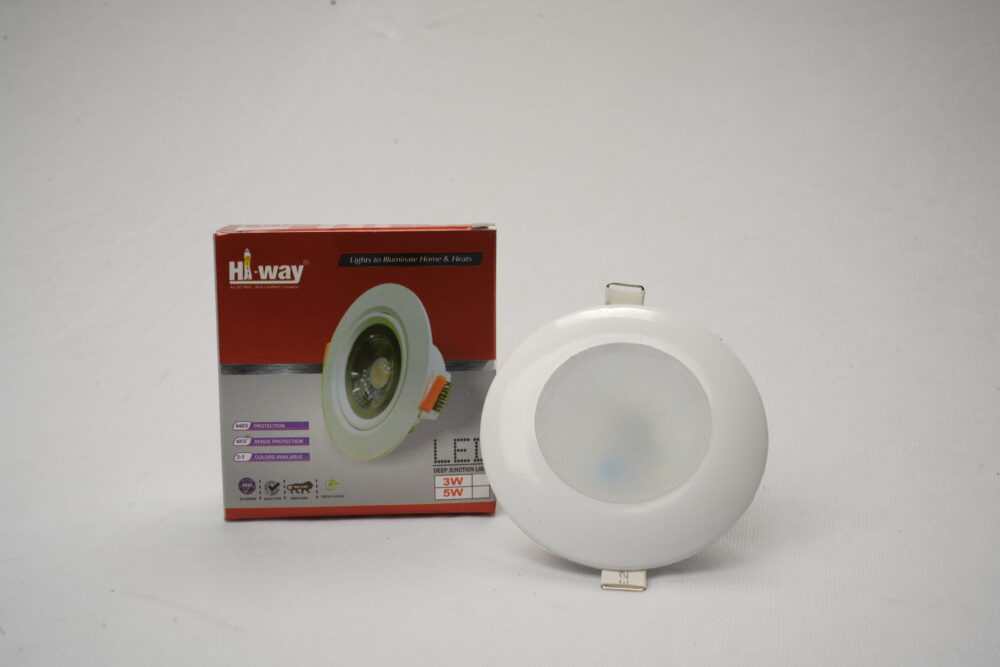

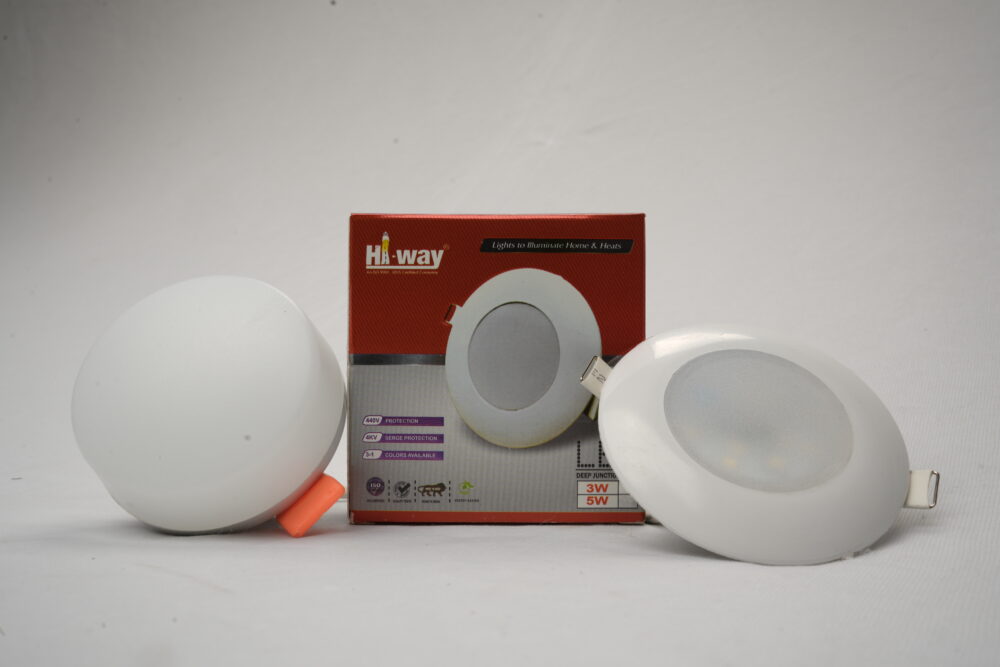

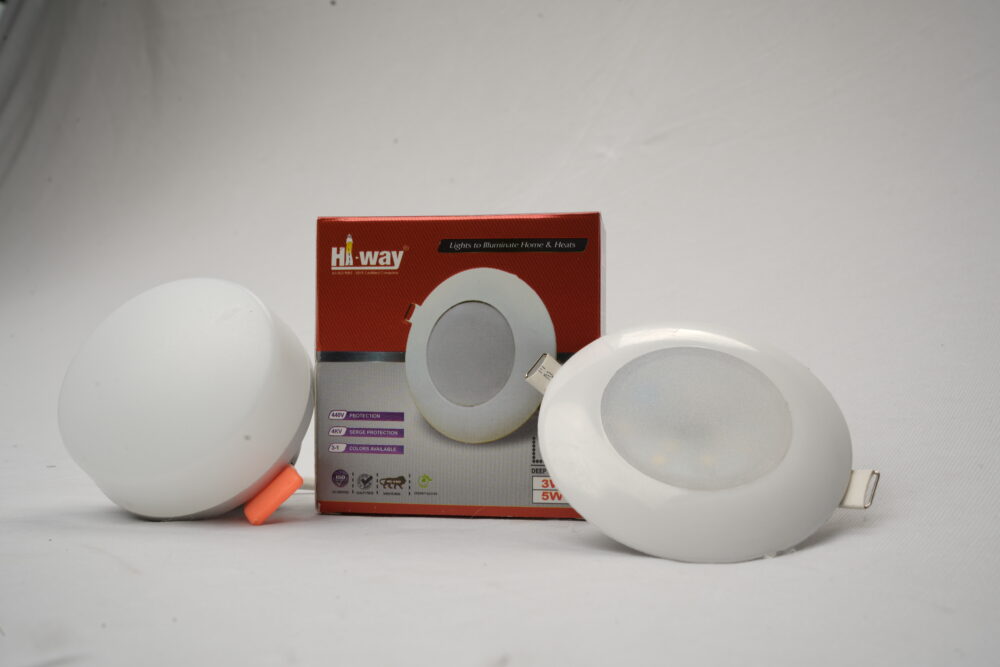

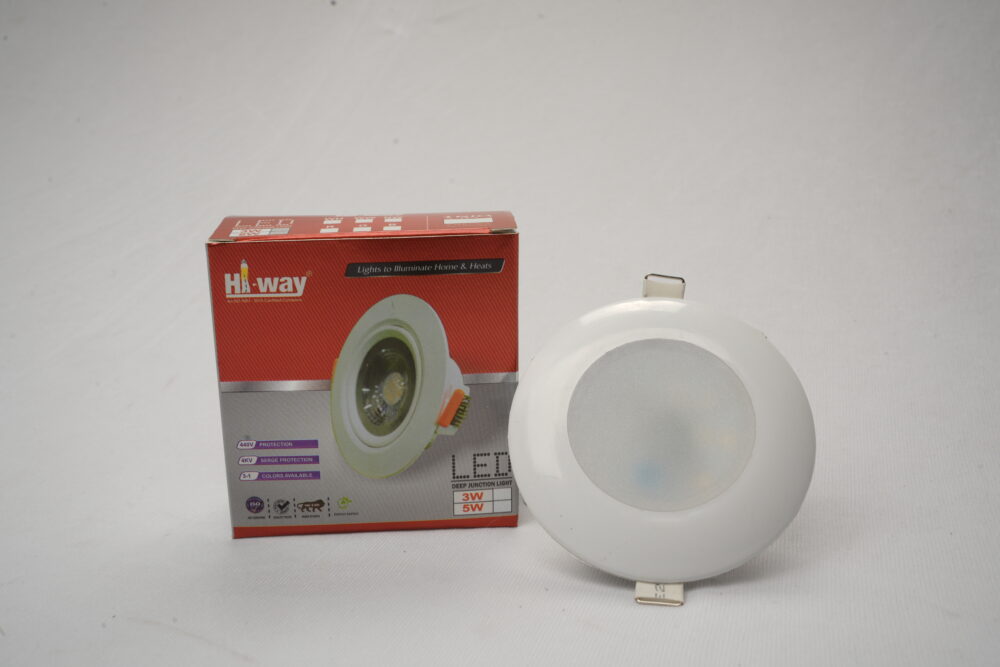

The Deep Junction Light is a recessed, high-precision luminaire designed for focused, glare-free illumination. Its deep reflector structure reduces glare while providing high lumen output, making it ideal for accent and general lighting in stylish interiors.
Wattage: 3W / 5W
Color Options: WH / WW / R / G / B / P / O / 3-in-1 Colours / RGB
Material: Die-cast aluminum housing with powder coating
LED Type: High-quality SMD
Input Voltage: AC 90–265V, 50/60Hz
Luminous Efficacy: 90–100 lm/W
CRI: ≥80
Beam Angle: 24°–60° (model dependent)
IP Rating: IP20
Lifespan: 25,000–30,000 hours
CCT Range: 2700K–6500K + RGB options
Driver: Isolated constant current driver with surge protection
Showrooms & retail displays
Hotels & lounges
Galleries & exhibition halls
High-end residential lighting
Cut ceiling hole as per product cutout size.
Turn off the power supply.
Connect driver wires to mains.
Insert fixture into cutout with spring clips.
Power on to test.
Wattage: 3W / 5W
Single color, 3-in-1 adjustable, RGB
CE, RoHS, ISO 9001
Required Test Reports:
LM-79 / LM-80 photometric
Electrical safety compliance
CCT & CRI verification
